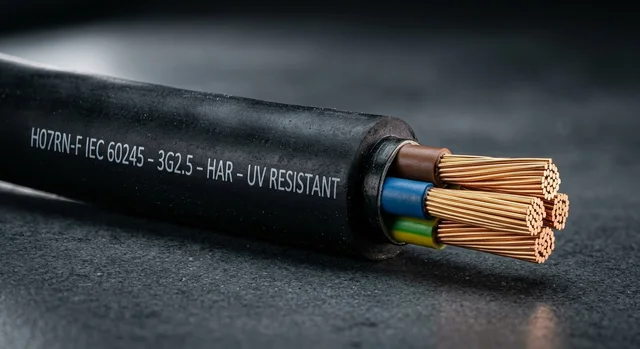

Industrial Rubber Cables

Key Features

Heavy-Duty Flexibility

Fine-stranded copper conductors and a highly flexible rubber jacket allow repeated tight-radius bending without fatigue — ideal for trailing, reeling, and drag applications.

Oil & UV Resistance

Outer jacket compound resists petroleum oils, cutting fluids, UV radiation, and mechanical abrasion to greatly extend service life on outdoor and underground sites.

Wide Temperature Range

Operates reliably from -30 °C to +90 °C, covering arctic construction sites through hot desert environments.

Certified Construction

Built to H07RN-F (IEC 60245) and equivalent international standards, accepted by inspectors across Europe, the Middle East, and Africa.

Key Specifications

Product Name	Industrial Rubber Cable
Standards	H07RN-F / IEC 60245 / IEC 60228
Conductor	Fine-stranded tinned copper, Class 5
Insulation	Ethylene Propylene Rubber (EPR)
Outer Jacket	Oil-resistant, UV-resistant chloroprene rubber (neoprene)
Temperature Range	-30 °C to +90 °C
Voltage Rating	450/750 V
Application	Construction, mining, temporary power distribution, port cranes

Product Overview

Overview

DEV CABLE’s Industrial Rubber Cables are engineered for applications where flexibility, environmental resilience, and safety certification are non-negotiable. Widely used for temporary power distribution, mobile machinery, port cranes, mining equipment, and construction hoists, these cables withstand conditions that would degrade standard PVC cables within weeks.

The H07RN-F construction features a fine-stranded Class 5 copper conductor for maximum flexibility, an EPR insulation core for electrical stability across the full temperature range, and an oil- and UV-resistant chloroprene outer jacket that maintains its mechanical properties year-round.

Available Configurations

Cores × Cross-Section	Outer Diameter (approx.)	Max. Current (in free air)
3G 1.5 mm²	11.2 mm	20 A
3G 2.5 mm²	12.8 mm	27 A
3G 4 mm²	14.5 mm	36 A
3G 6 mm²	16.5 mm	46 A
3G 10 mm²	20.5 mm	63 A

Custom configurations, including 4-core and 5-core, are available upon request.

Why Choose Industrial Rubber Cables?

✓ Certified H07RN-F construction accepted on regulated construction and mining projects.
✓ Flexible at low temperatures — no stiffening or cracking in cold-climate operations.
✓ Resistant to oil, abrasion, and UV — significantly lower replacement frequency.
✓ Available in 1.5 mm² through 50 mm² cross-sections and multi-core configurations.
